Control Console TeKno is the ultimate solution for your new generation control center.

Engineered with the latest technological trends, with a minimal and unique design, this Control Room Console combines optimal efficiency for the operators and joy for the eyes of every visitor. Robust, built to last with the best materials for 24/7 critical environments.

Tekno Ergonomic Desk meets the ISO 11064 requirements and the EEMUA 201 recommendations (when it is equipped with motorized frame) for a safe and efficient environment.









CONTROL CENTER TEKNO OUR WORKS











DESIGN AND RELIABILITY 24/ 7 PERFORMANCE CONTROL CONSOLES FOR CRITICAL ENVIRONMENTS

  • Load distributed on the TOP up to 200kg (console with motor).
  • Load distributed on the TOP up to 500kg (console without motor).
  • Motorized column 110-240Vac 50-60Hz (optional).
  • Anodized aluminum base and epoxy powder coated steel covers.
  • Column and cable duct colors RAL 7035, 6021, 5017, 5018, 9005 (optional).
  • Furniture colors RAL 9006.



STAND ALONE SOLUTION WITH WALL MONITOR AND VIDEO CONTROLLER

  • 24" or 27" monitor, complete with 3-joint mobile arm support, and slides on the work surface.
  • 50" or 55" monitors, videowall structure complete with supports and various accesories.
  • Top (work surface) to be chosen between 40mm chipboard wood or 18mm HPL stratified wood (optional on customer's specification).
  • Computer compartment under the work surface. Rack 19" (optional) 5 or 9 units in height.
  • 19" Rack structure in the central module for the housing of sockets, swhitch, Hu (optional on customer's specification).
  • Cable channel under the work surface.



Control Console TeKno







MODULAR CONSOLE STANDARD MODELS

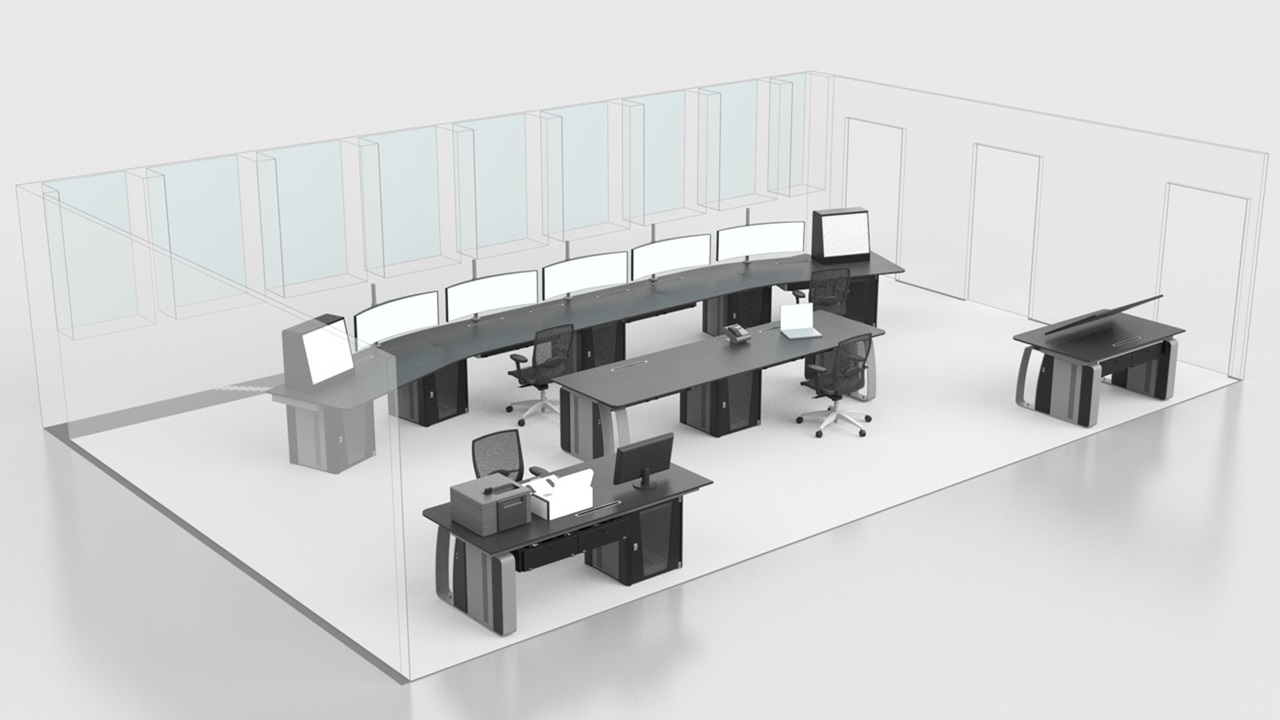

The Control Console Tekno is a modular and adaptable technical desk. It is designed both to be a stand alone console or to be assambled in a more complex arrangement. The extreme customization of our consoles allows to create a wide range of command control center layouts: concave, convex, semi-circular and custom designed.

modular control console

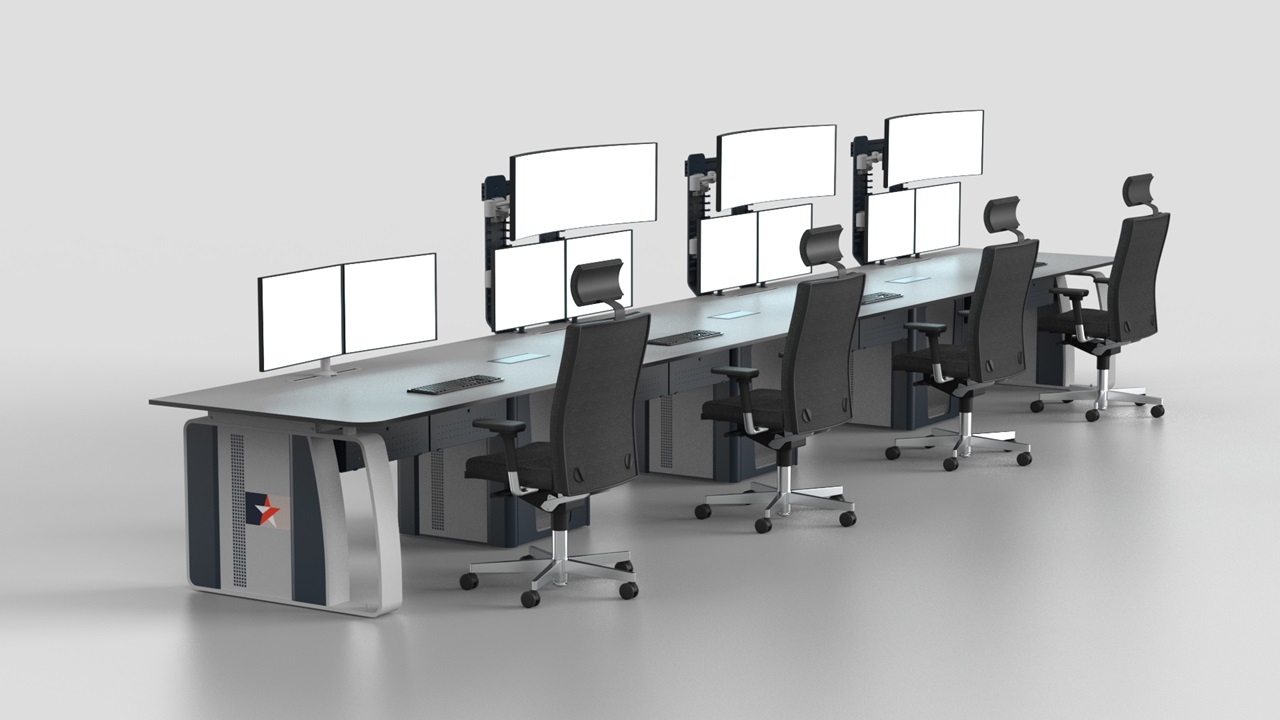

MODULAR CONSOLE LINEAR LAYOUT

CONTROL CONSOLE TEKNO LINEAR LAYOUT

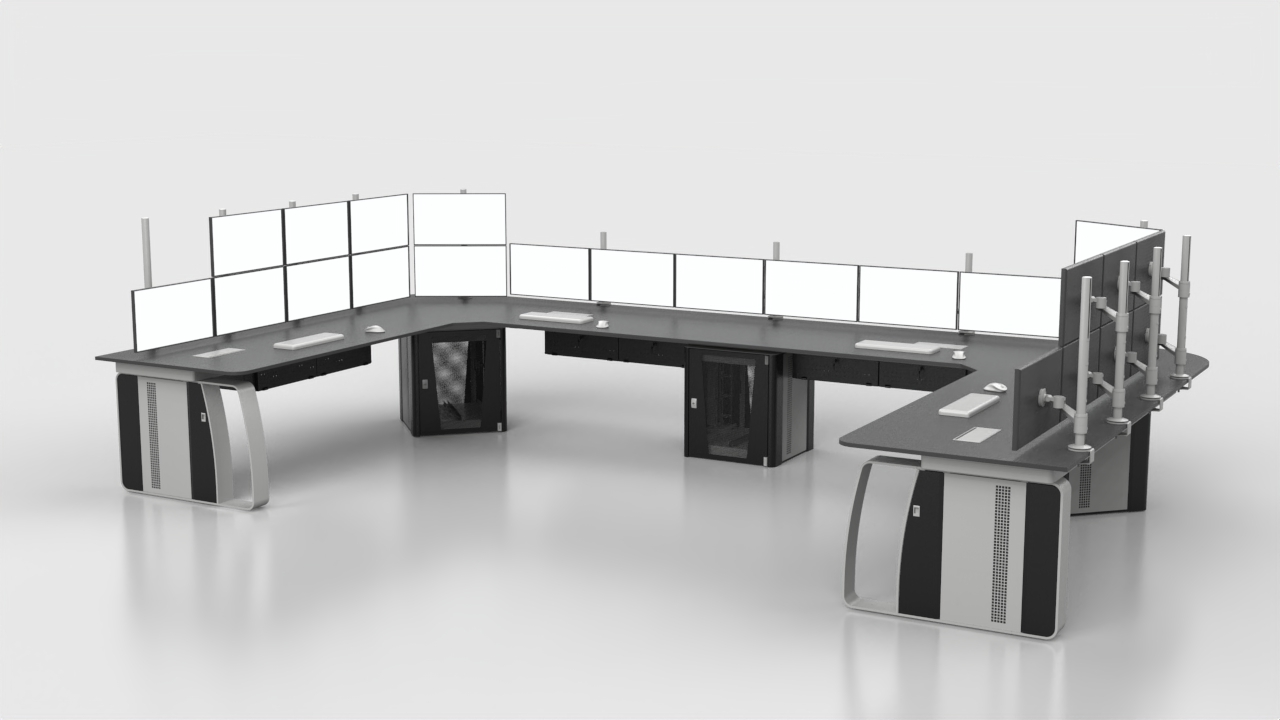

MODULAR CONSOLE CIRCULAR LAYOUT

CONTROL CONSOLE TEKNO CIRCULAR COMPOSITION







WIRING AND EQUIPMENT  MAXIMUM EFFICIENCY AND ORGANIZATION





CONTROL CONSOLE TEKNO WIRING AND EQUIPMENT HOUSING

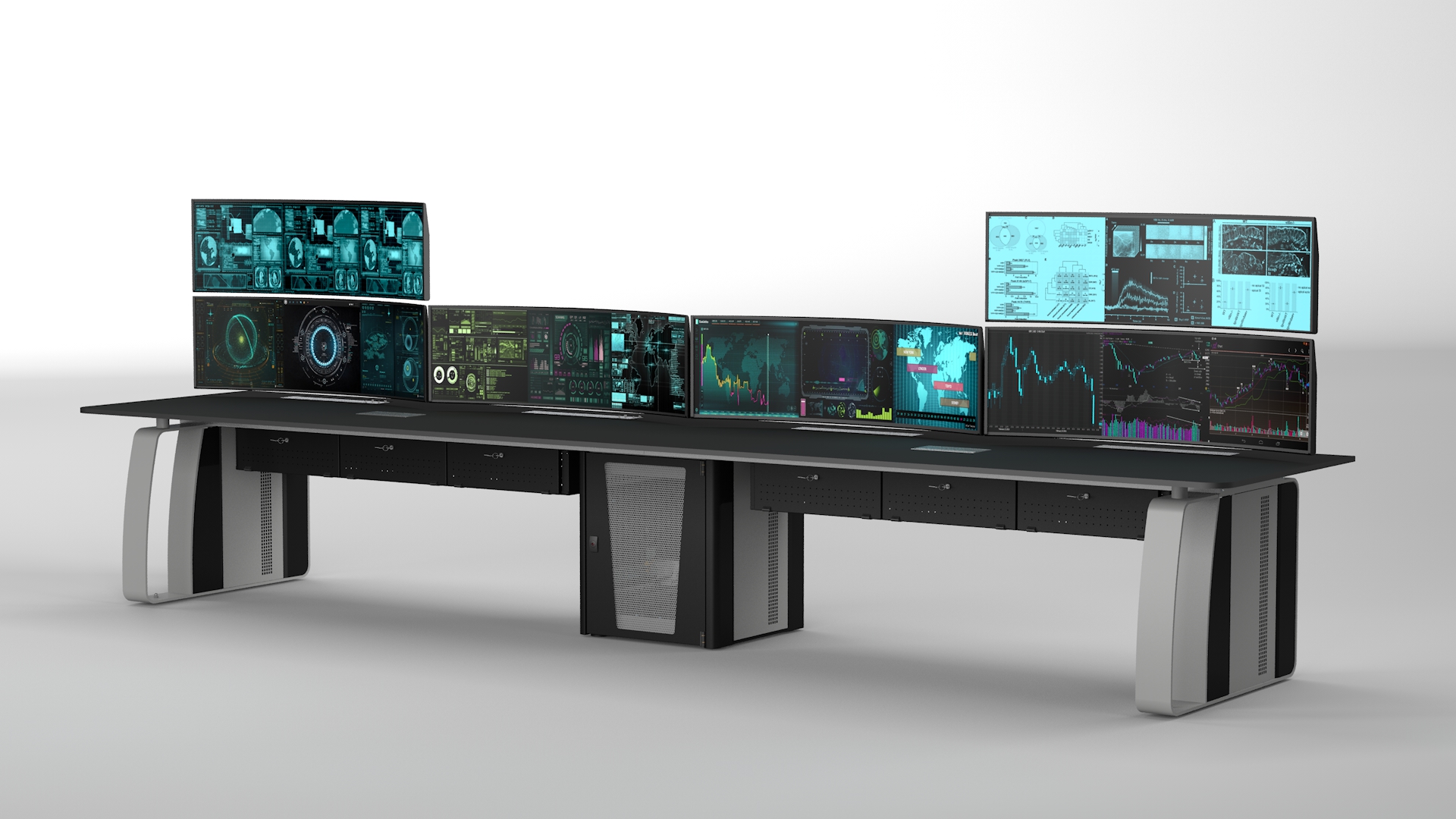

FRONT VIEW OF A 2 OPERATOR CONSOLE  -  Equipped with 2 Canal Racks and 1 Compartment accessorizable with rack 19"

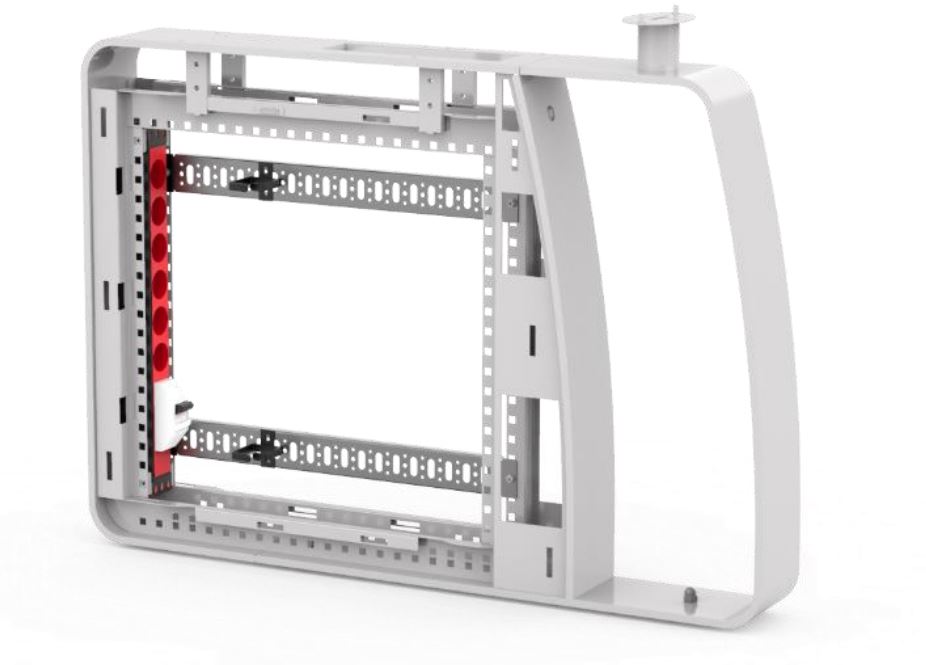

 INTERNAL LEG VIEW - Distribution PDU with magnetothermic switch, cable anchoring.

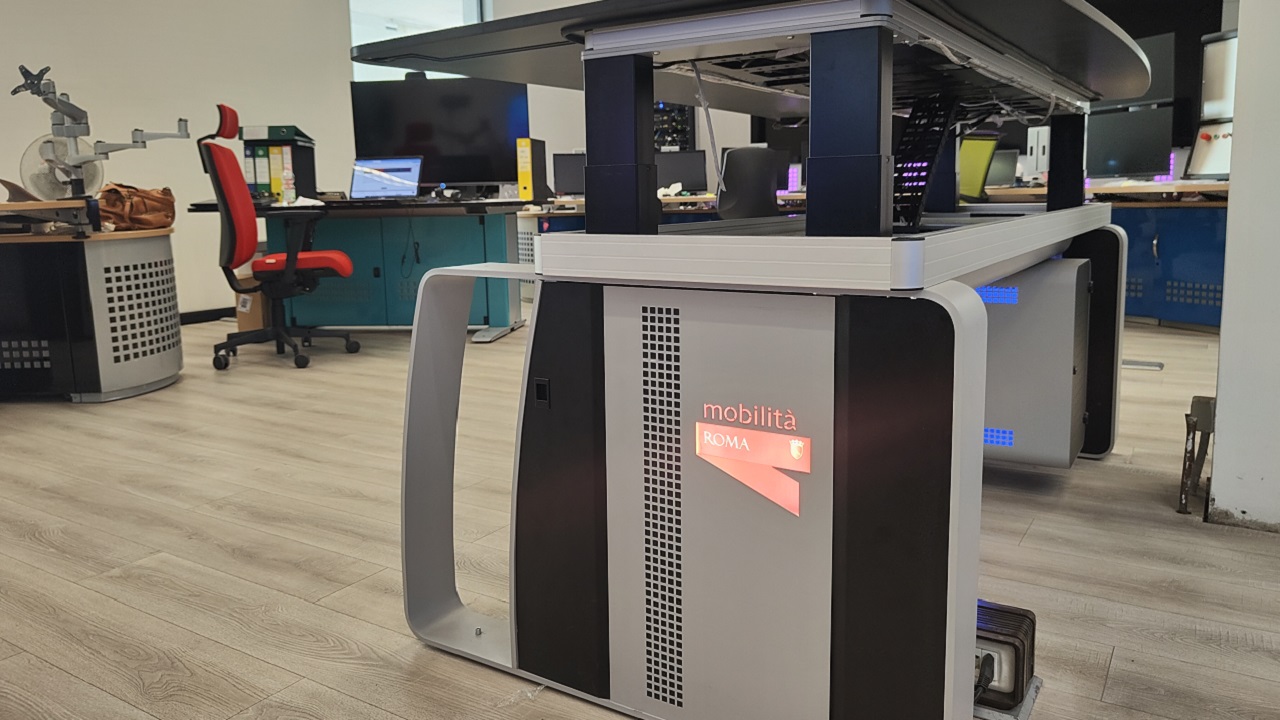

SIT AND STAND  MOTORIZED LEG

Control Console Tekno has a motorized lifting leg to raise the working surface from 760mm to 1200mm. With a thrust force of 3000N (300Kg) it ensures maximum freedom of movement and perfectely fits every operator. A Sit-Stand system is higly recommended by ergonomic standards, especially in continuos work environments such as command control centers, in order to reduce physical stress and fatigue.



control console tekno with sit stand system
