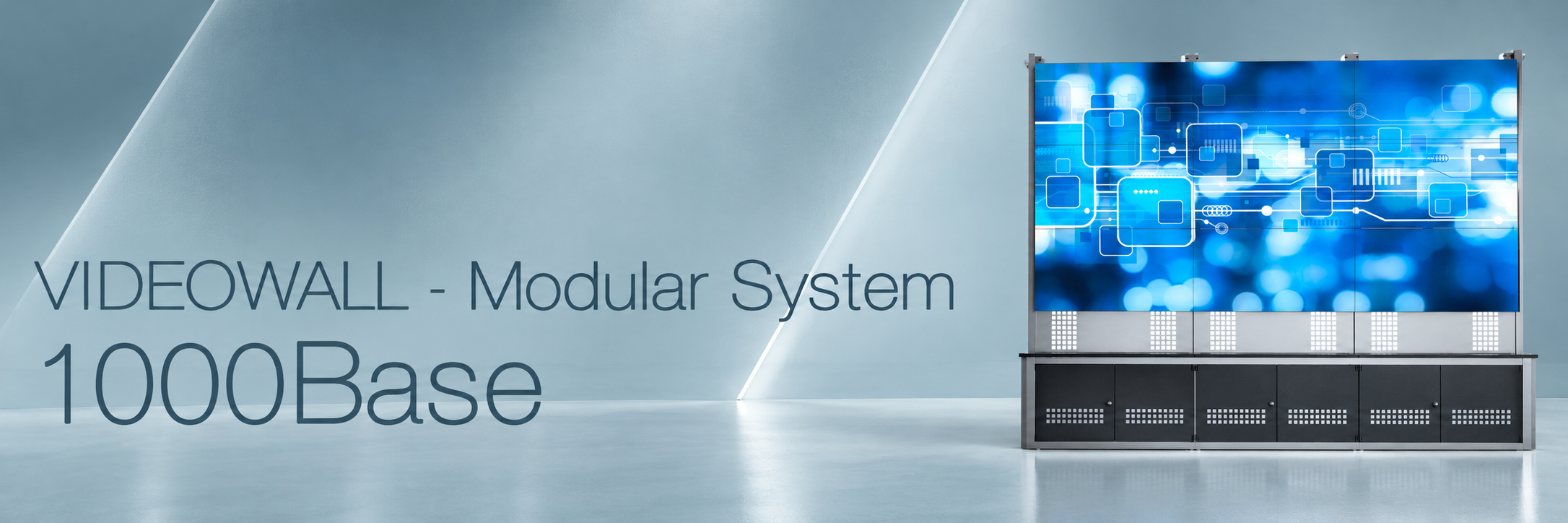

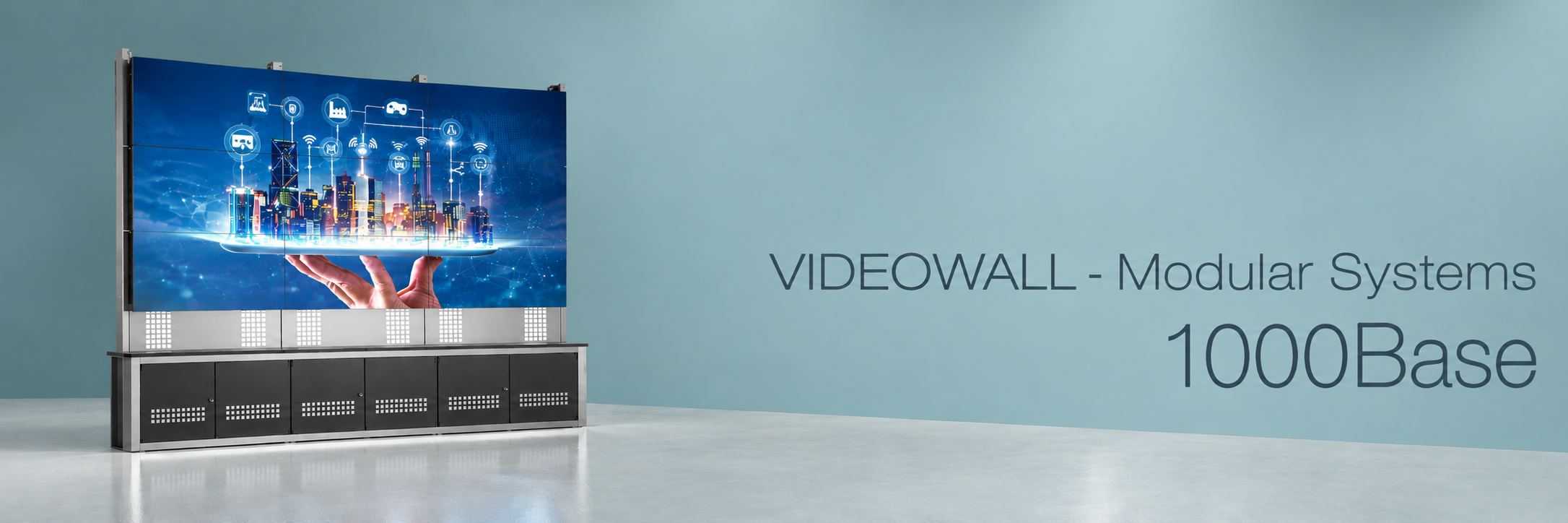

Videowall 1000 Base

VideoWall 1000Base is a modular Video Wall complete with monitors and supporting structure, to be fixed to the wall.

Perfect for those who require a more complex, robust, elegant and high-performance solution. This modular video wall is available in standard models or in modules with a 1200mm pitch (for monitors from 50" to 60") or with a 1000mm pitch (for monitors from 40" to 46").

In the lower part, the large 300mm deep modules are real electrical cabinets and allow, inside them, the installation of electronic equipment, video housing, hardware and software systems (for the acquisition of images from IP cameras or systems such as SCADA, Milestone etc...) or even the fixing of 19" racks. Front access with doors and provision for forced ventilation.

In the upper part, each module of the video wall is complete with support crosspieces and provision for PUSH-OUT extraction brackets for the monitors, cable passage integrated into the structure and removable embellishment panels, as well as being electrified with 230V sockets for monitor power supply.

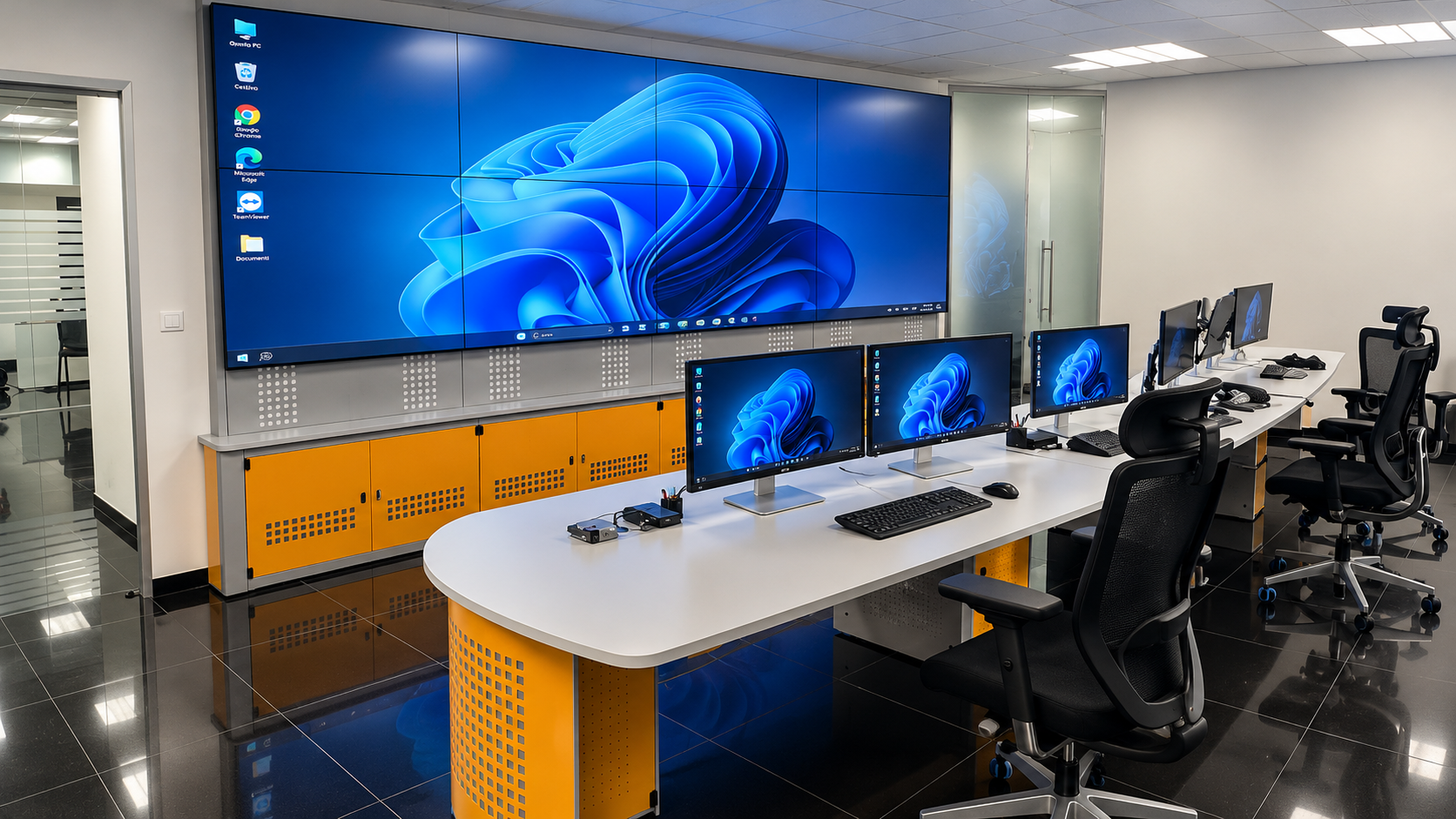

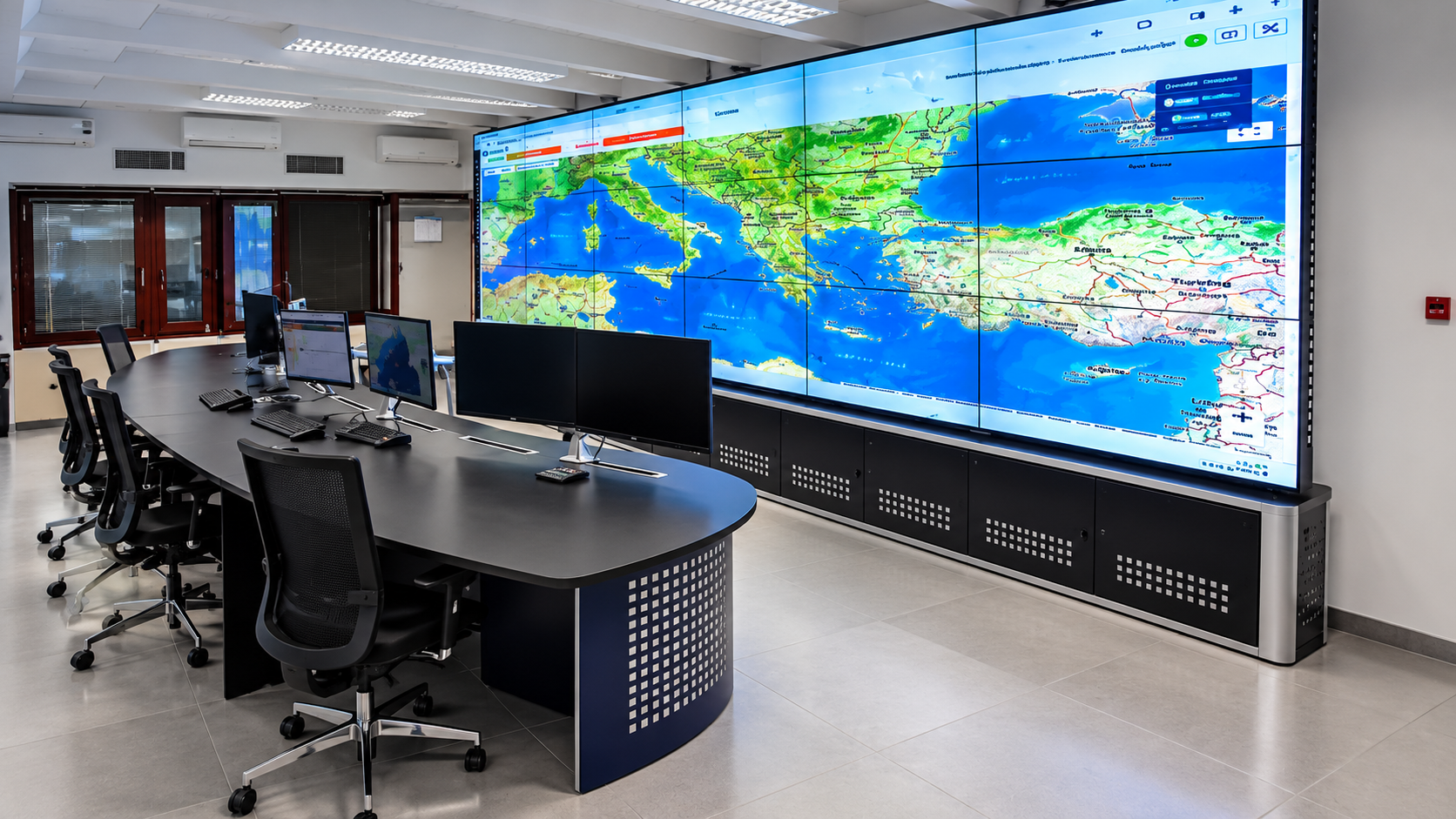

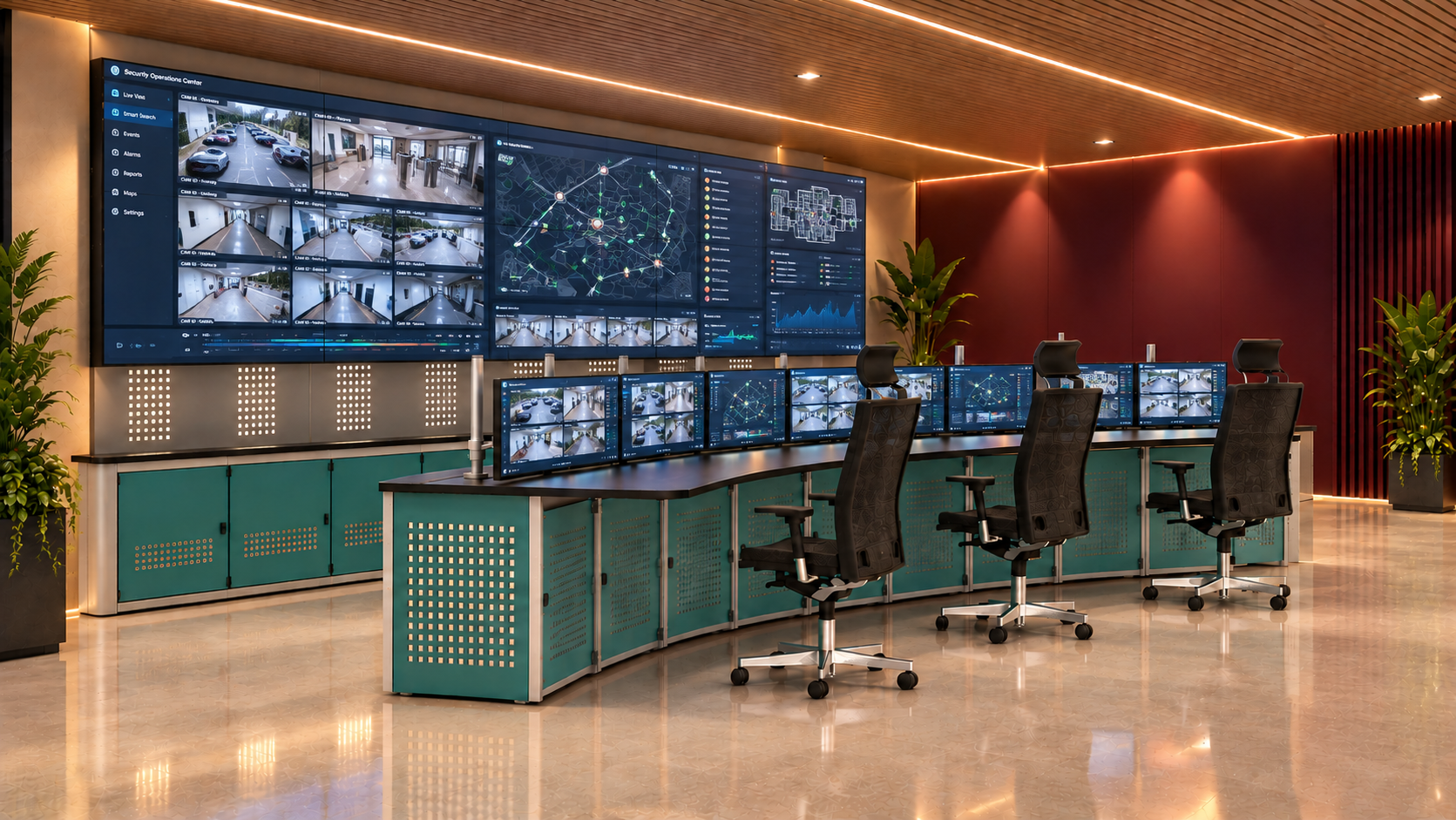

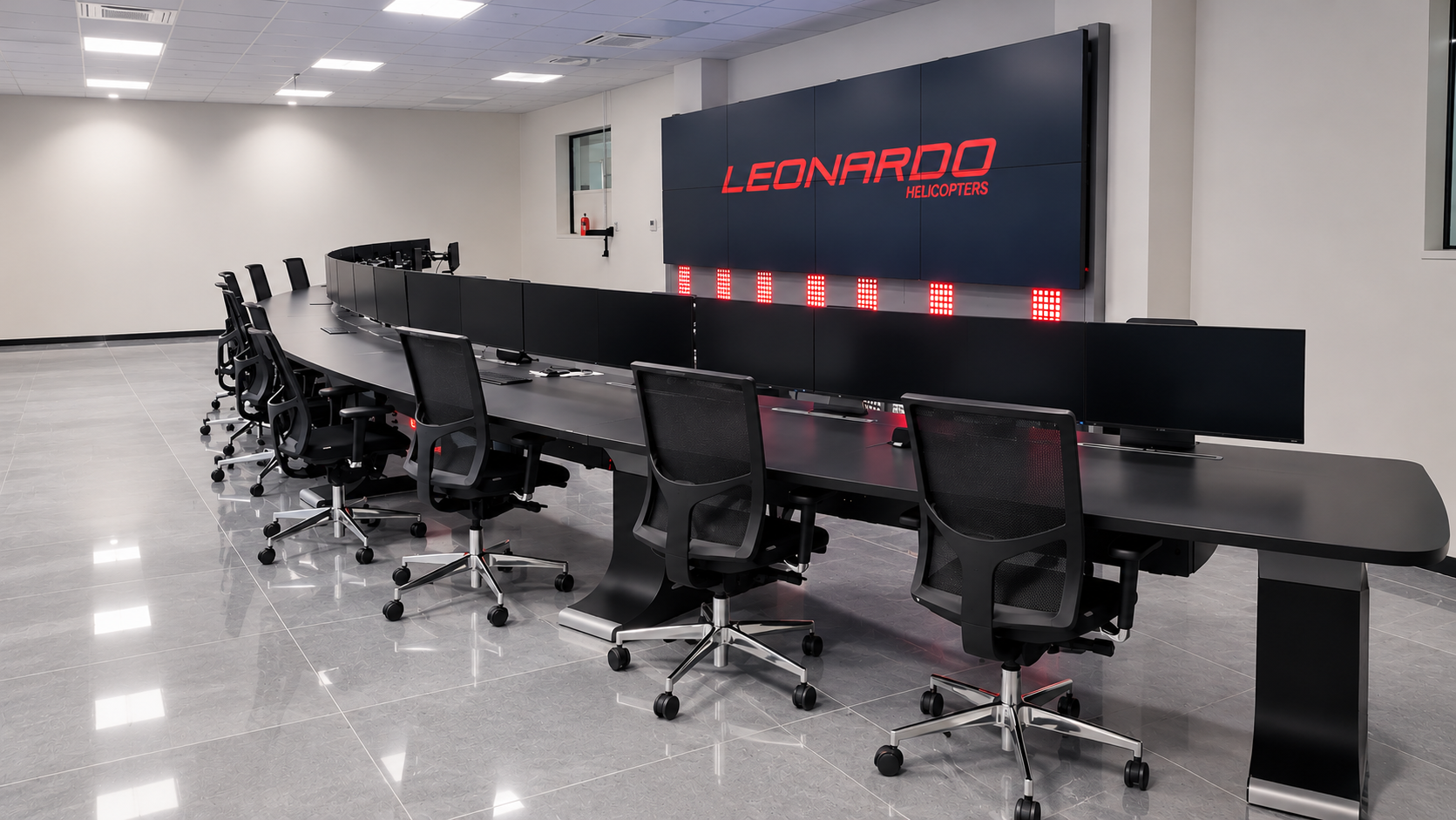

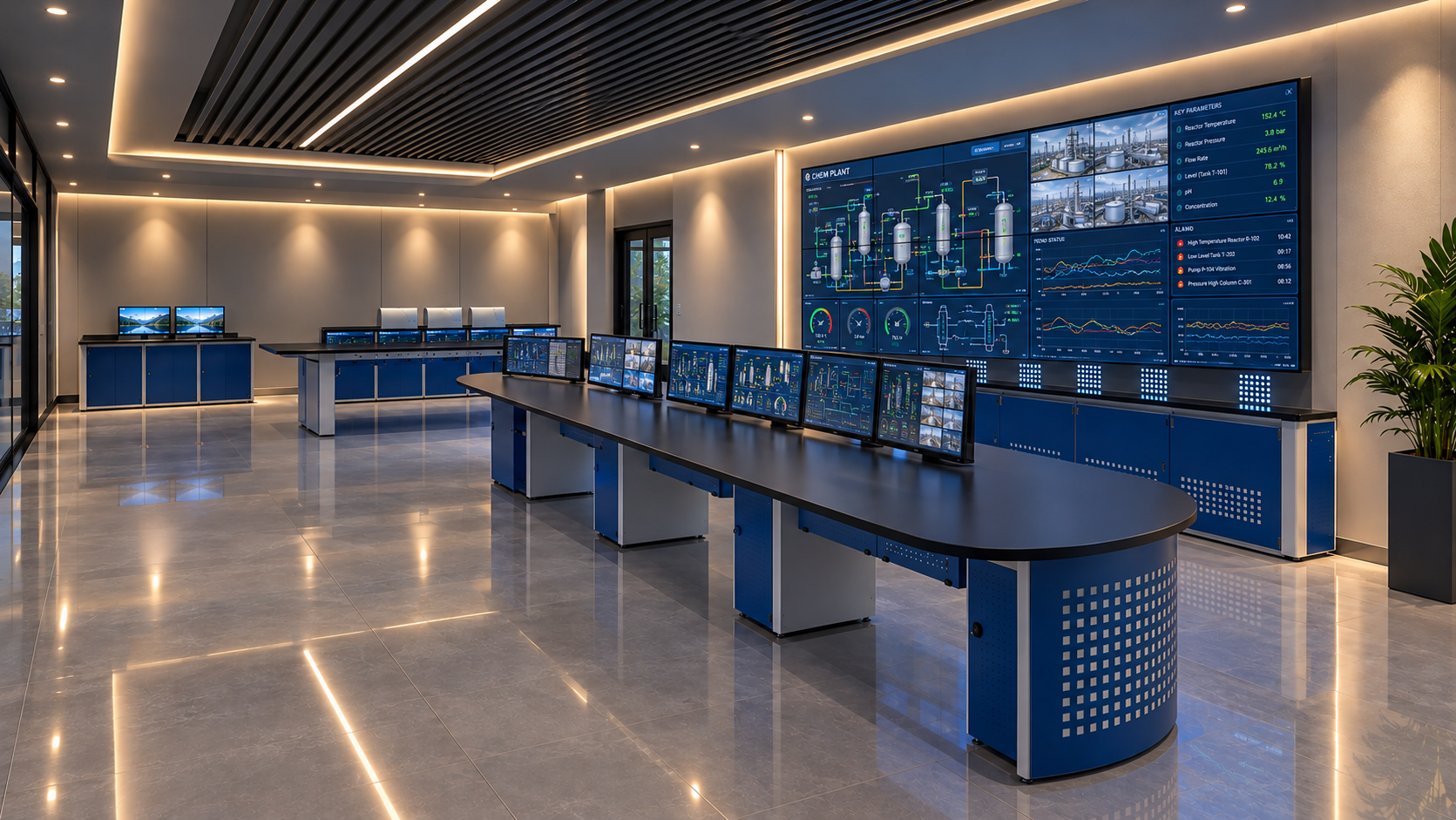

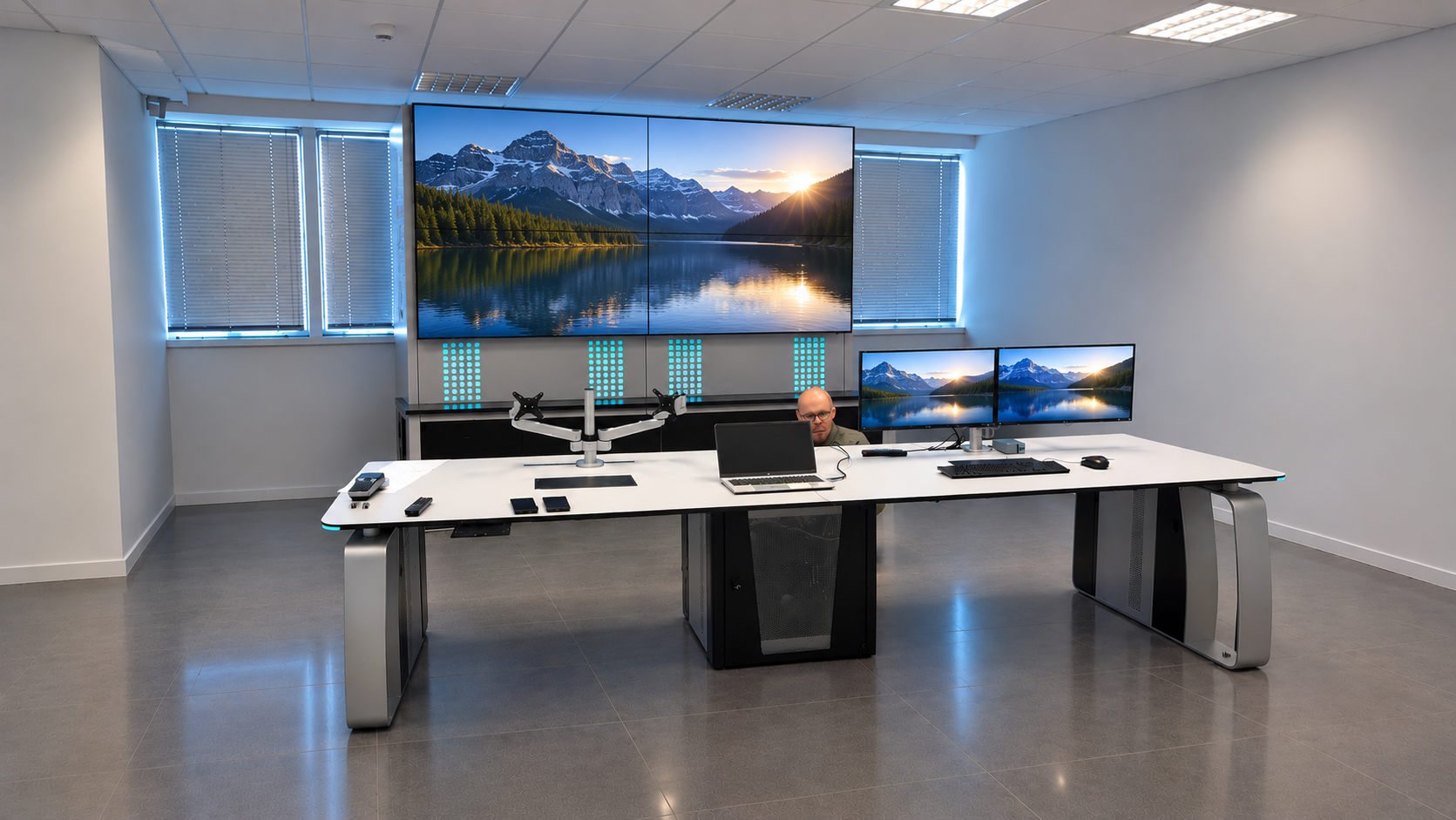

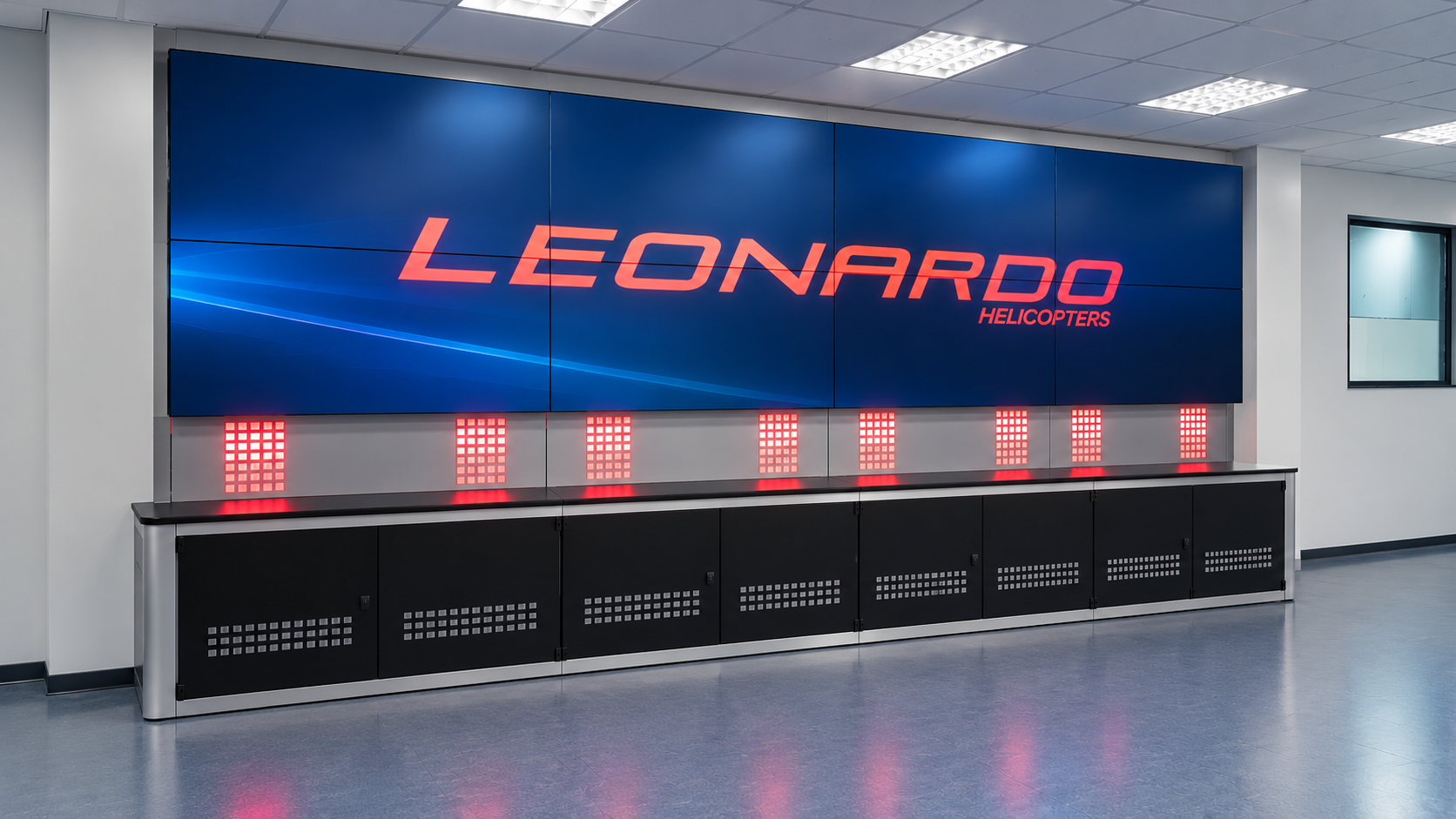

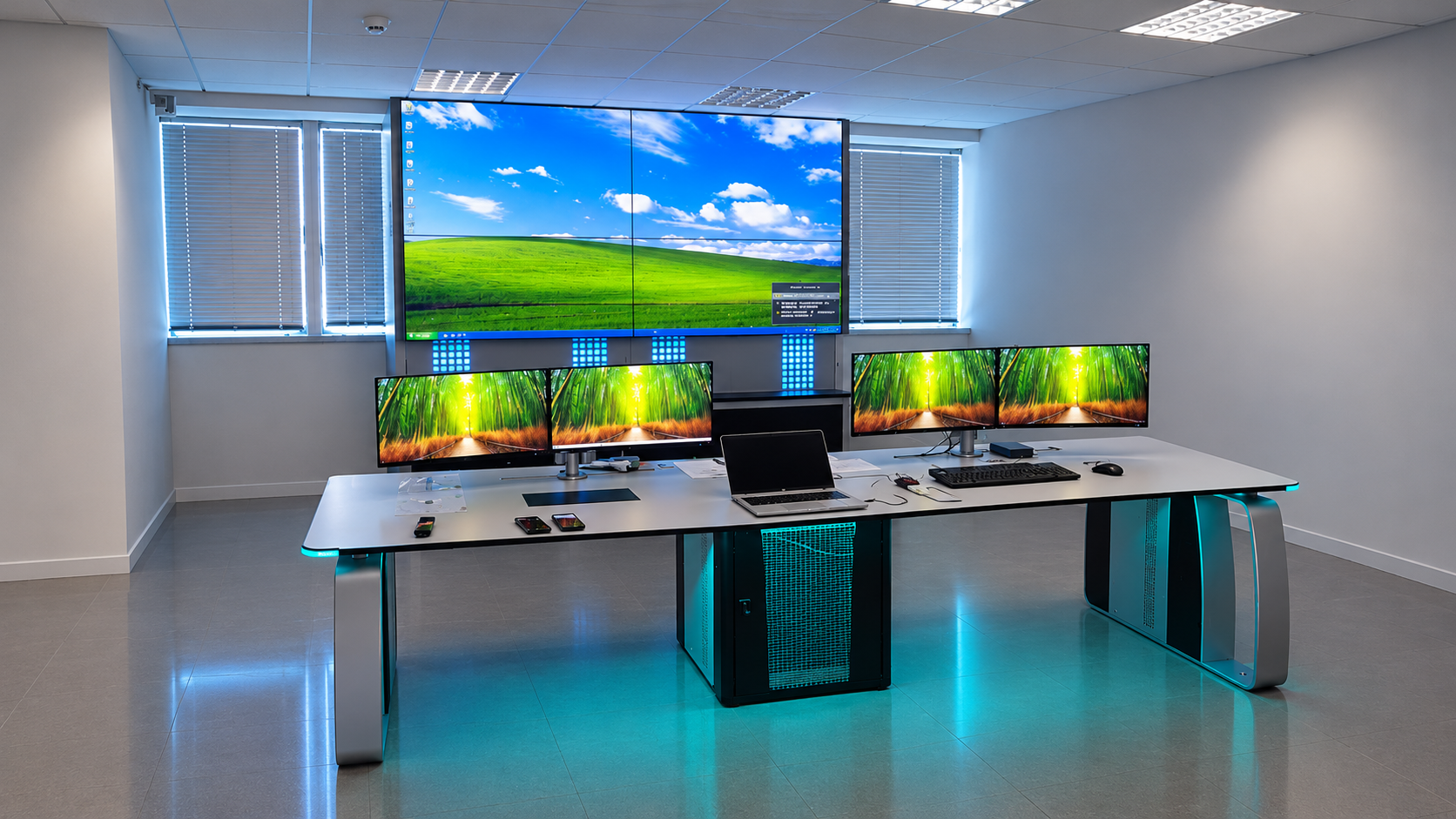

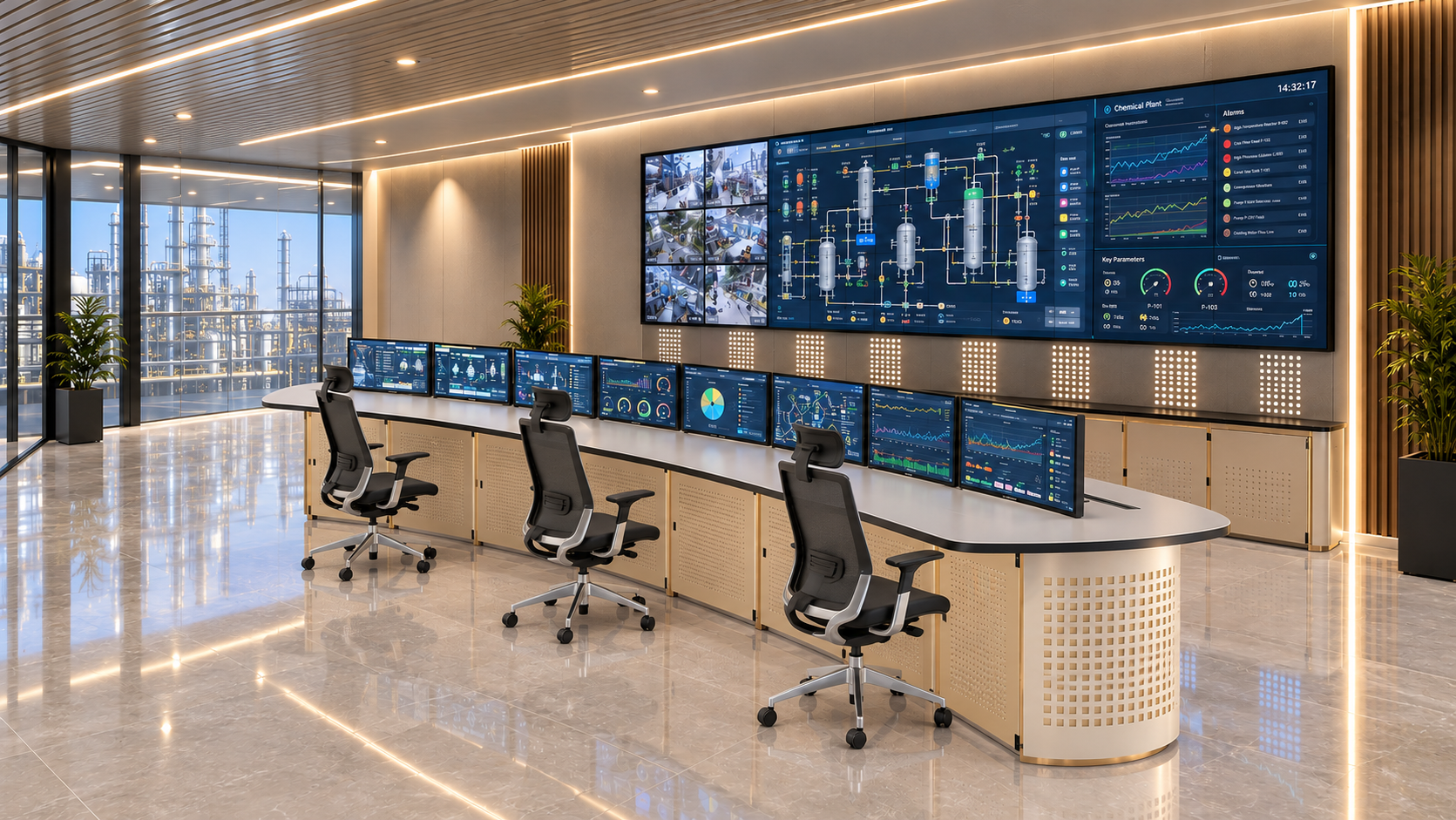

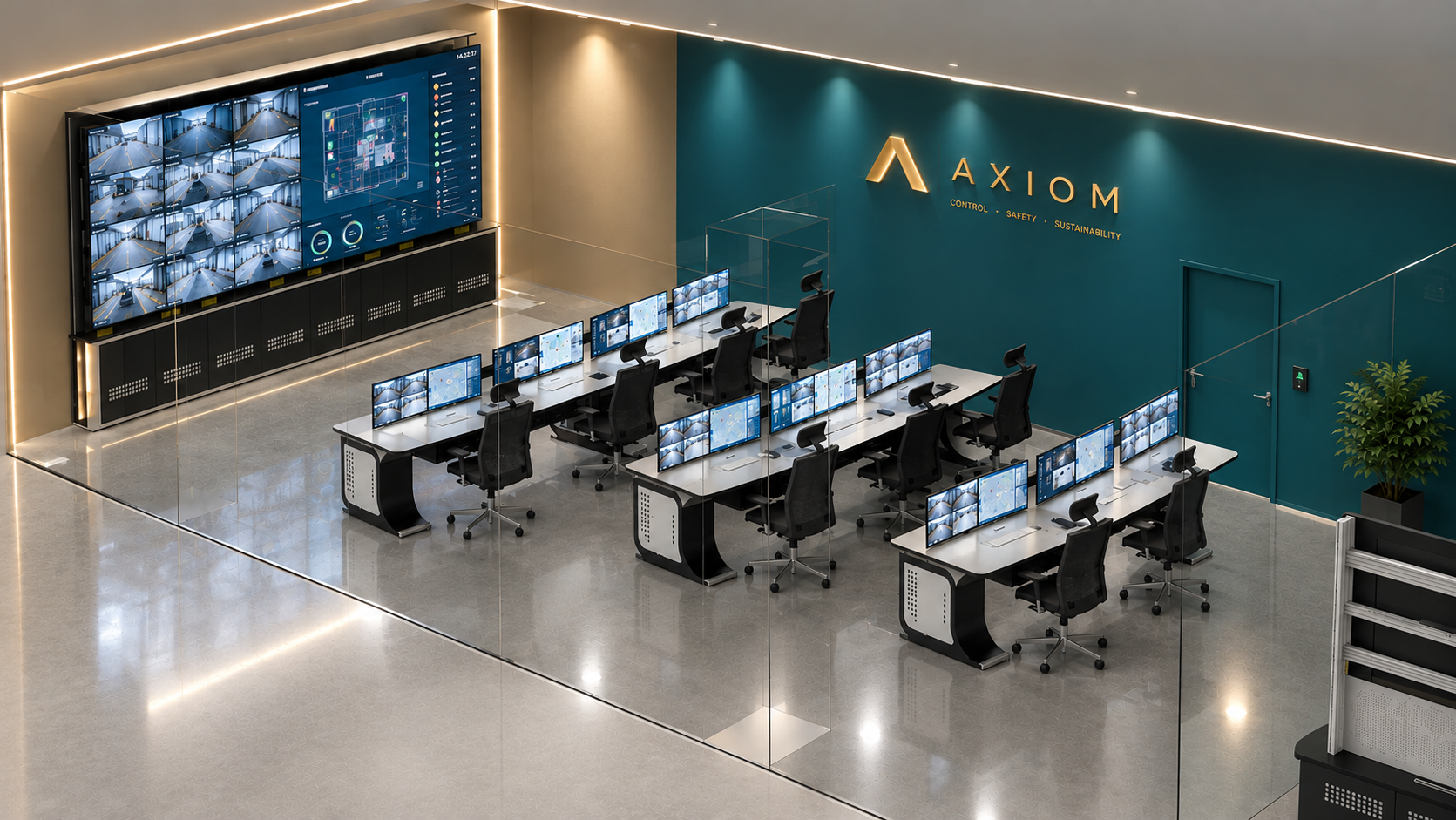

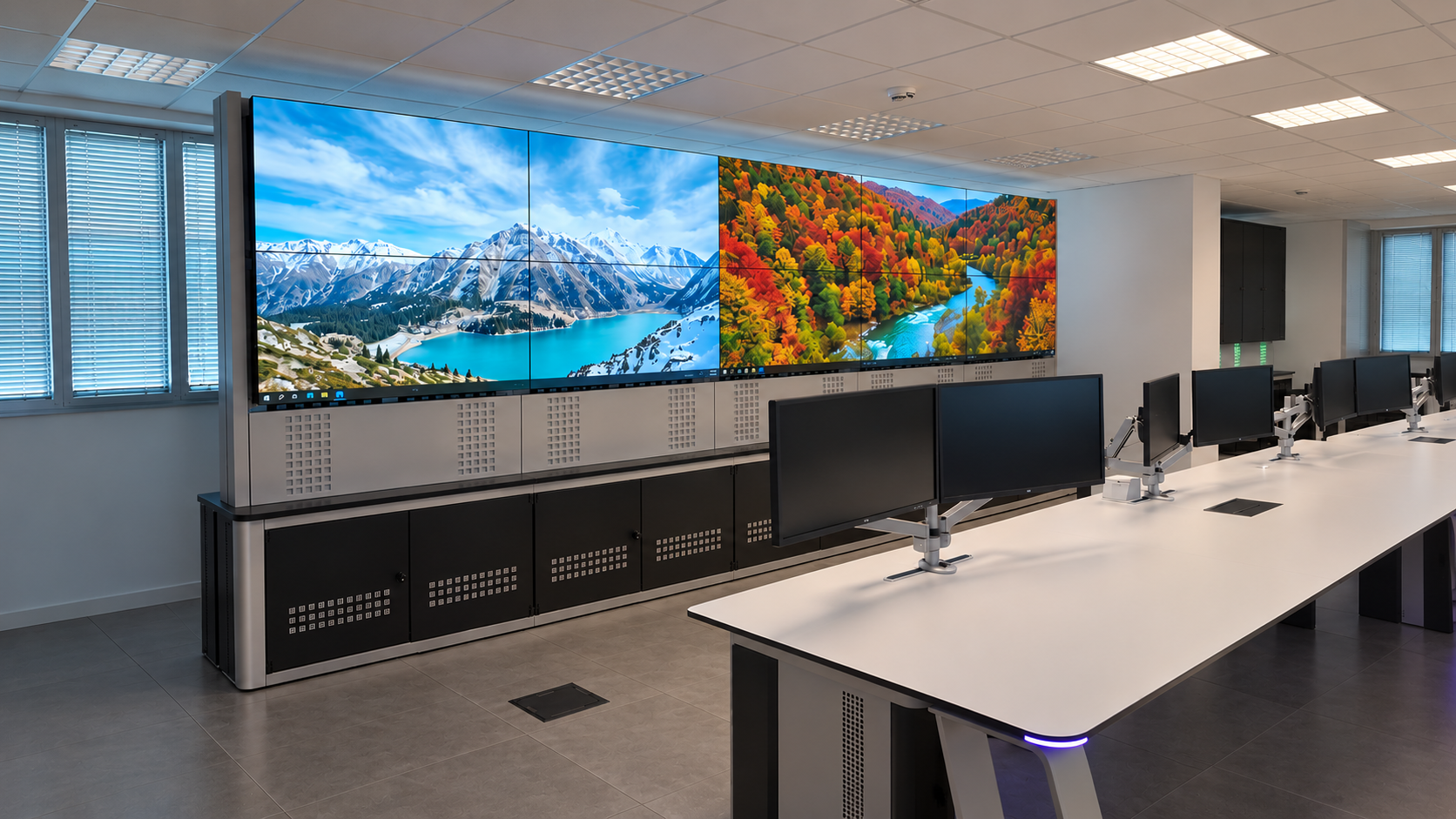

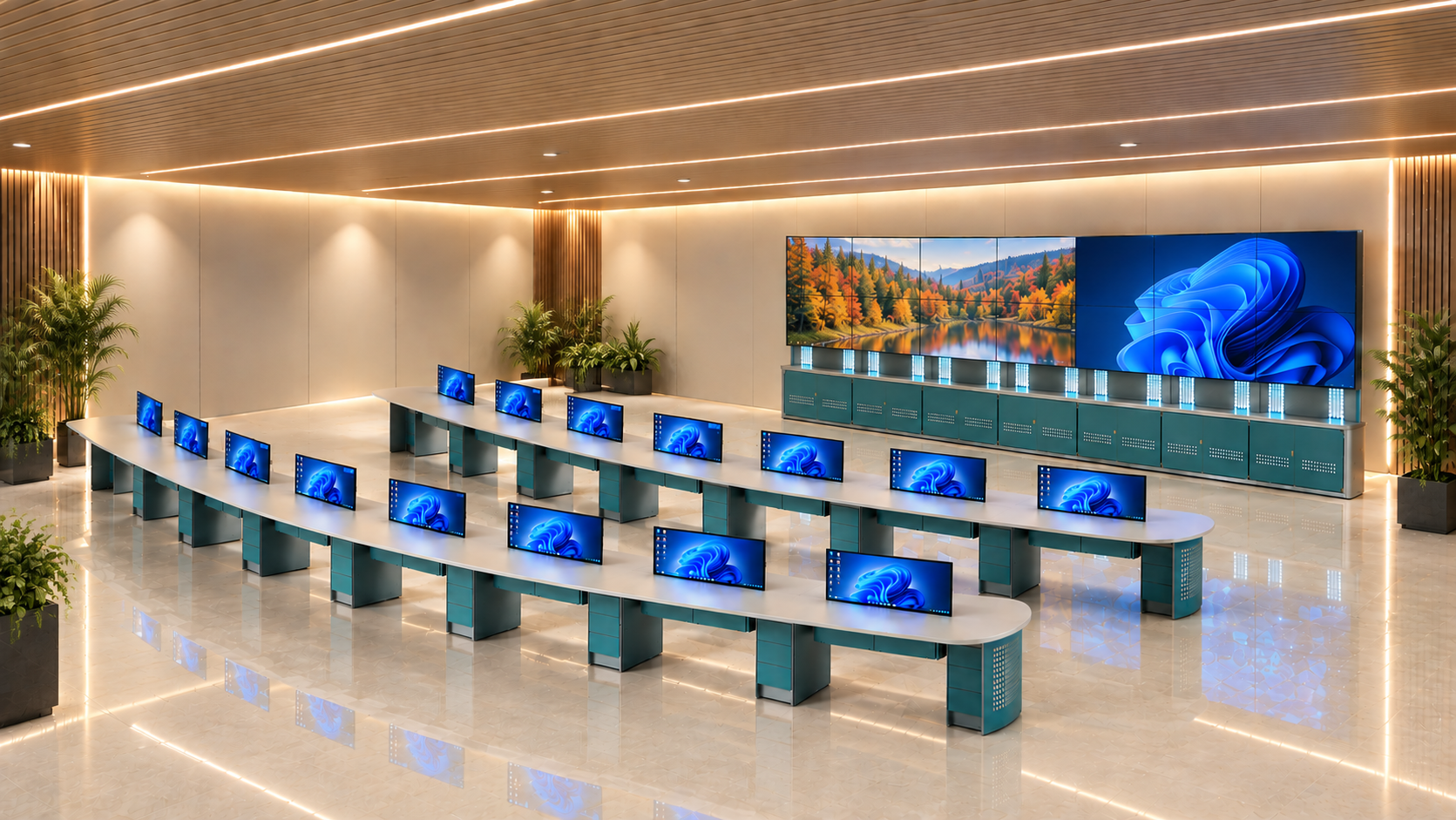

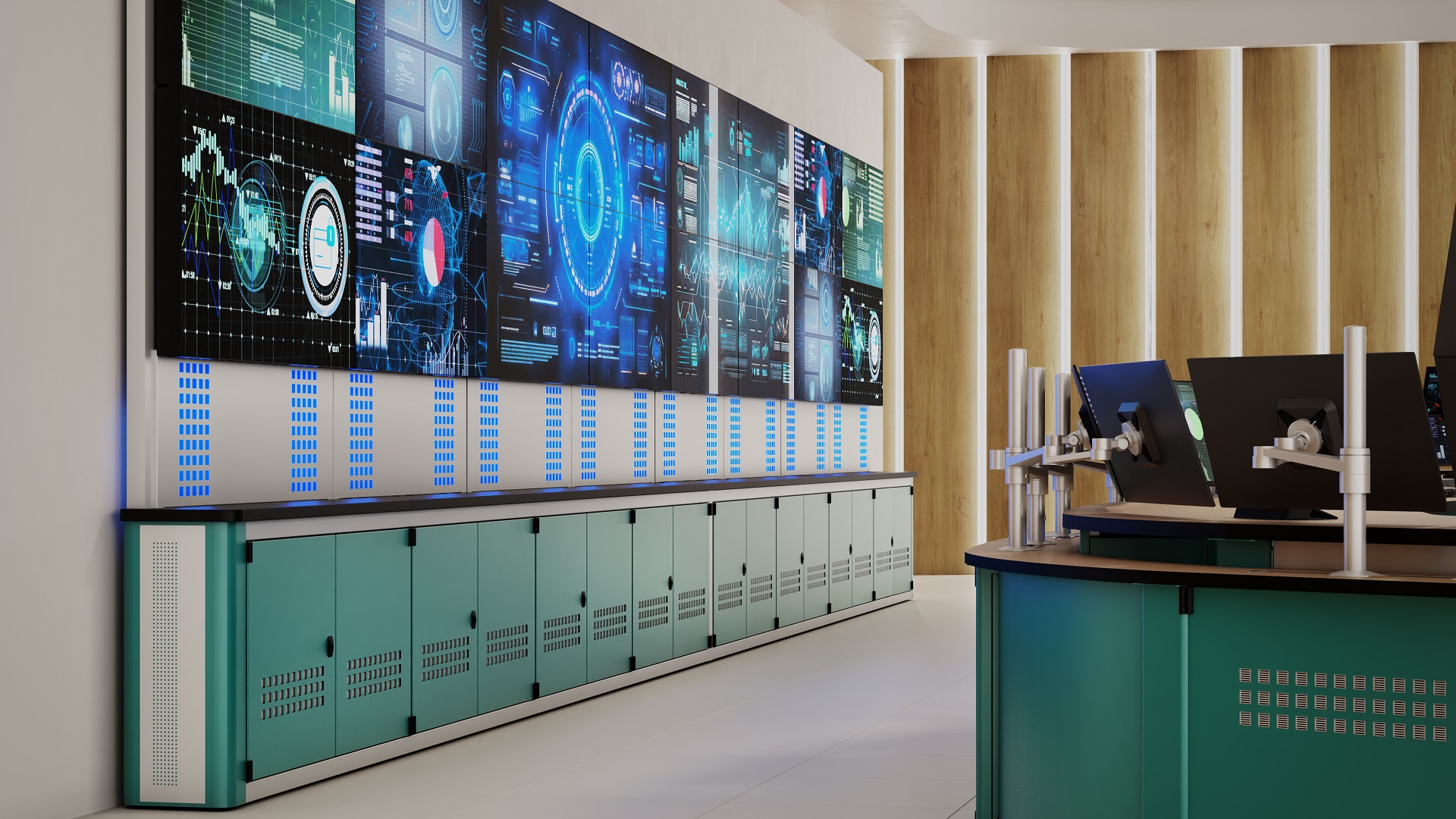

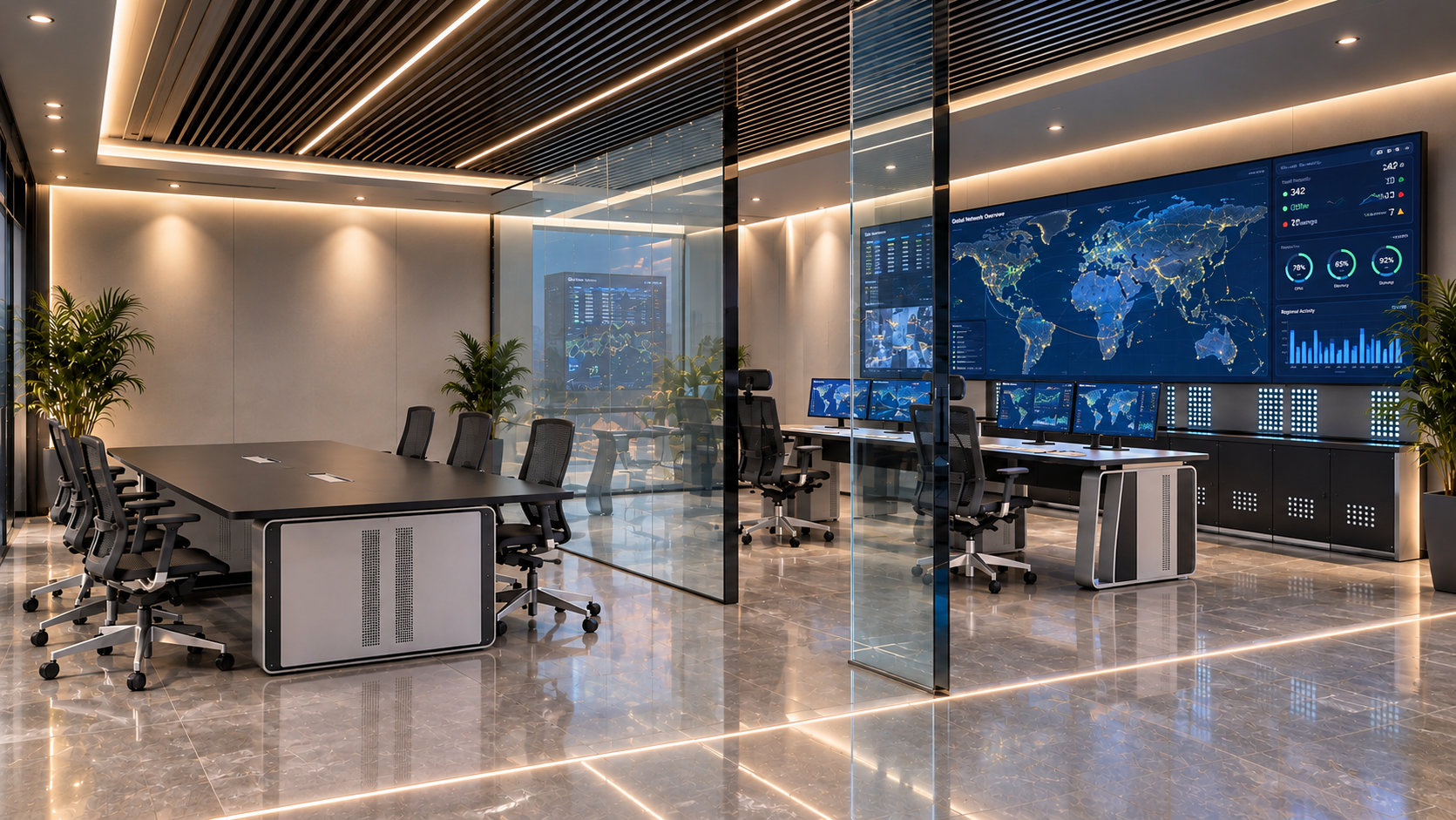

VIDEO WALL 1000BASE SOME CASE STUDIES FOR CONTROL ROOM

DESIGN AND RELIABILITY A VIDEOWALL FOR PROFESSIONAL ENVIRONMENTS WITH 24/7 OPERATION

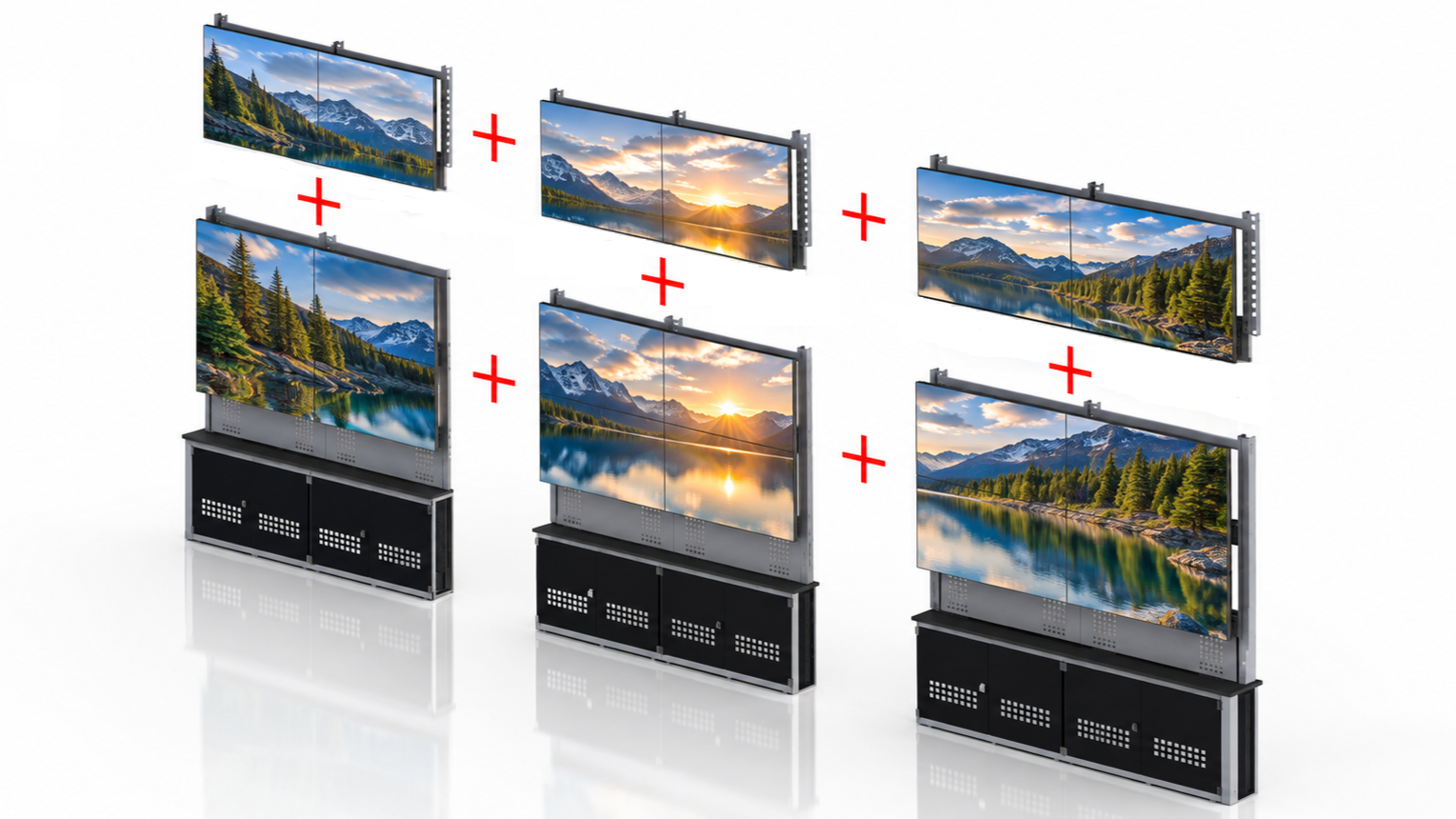

Thanks to its modular system, Video Wall 1000 Base is available in linear modules with 1000mm pitch and 1200mm pitch.

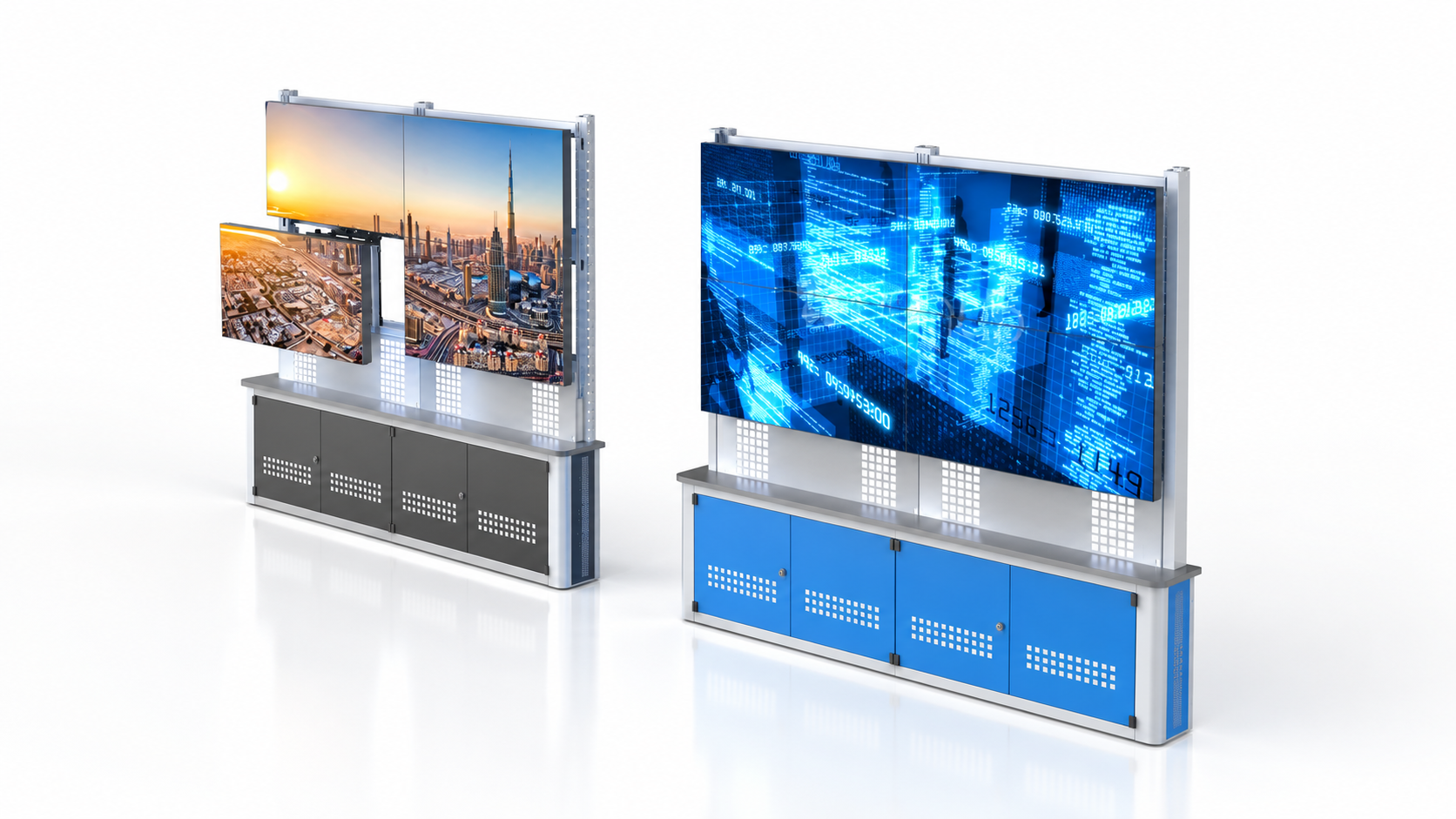

VideoWall 1000 Base has a light but sturdy structure and is quick and easy to assemble. Built according to the latest technological trends, it includes complete management of cables, power sockets, Video Wall Controller and, thanks to the cabinet with doors, allows the accommodation of computers, 19" racks and electronic accessories.

THE VIDEO WALL 1000 BASE STRUCTURE IS EQUIPPED WITH:

46" monitor, complete with supports and accessories (if you choose the structure with 1000mm pitch);
50" or 55" monitor, complete with supports and accessories (if you choose the structure with 1200mm pitch);
Cable channel integrated into the structure;
Schuko and bivalent 230Vac power strips integrated into the structure;
PUSH-OUT monitor support (extractable, upon customer request);
Cabinet equipped with 19'' racks
Accommodation for computers and other electronic equipment with DIN pitch;
Cooling fans in the front doors (upon customer request);
RJ45 Ethernet Patch Panel ready.
