BOSCO Control Console Karma2

Experience the freedom - durable, unique and ergonomic


brochure

gallery

request info

Our Control Console Karma2 is designed for Control Centers with the harshest 24/7 working environments.

Built with the latest technological trends, extremely robust and durable yet incomparably elegant and with a unique design, this Control Room Console combines harmony with efficiency.

Karma2 Ergonomic Desk meets the ISO 11064 requirements and the EEMUA 201 recommendations (when it is equipped with motorized frame) for a safe and efficient environment.

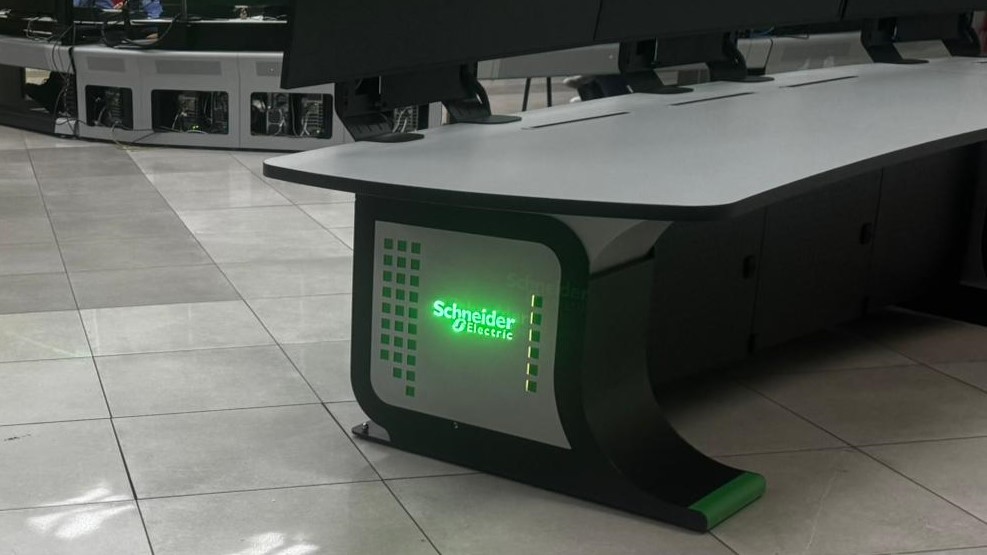

CONTROL CENTER KARMA - OUR WORKS







EXTREEM ROBUSTNESS - 24/ 7 PERFORMANCE CONTROL CONSOLES FOR CRITICAL ENVIRONMENTS

  • Load distributed on the TOP up to 300kg (console with motor).
  • Load distributed on the TOP up to 1000kg (console without motor).
  • Motorized column 110-240Vac 50-60Hz.
  • Anodized aluminum base and epoxy powder coated steel covers.
  • Column and cable duct colors RAL 9006.
  • Furniture colors RAL 7035, 6021, 5017, 5018.



STAND ALONE SOLUTION WITH WALL MONITOR AND VIDEO CONTROLLER

  • 24" or 27" monitor, complete with 3-joint mobile arm support, and slides on the work surface.
  • 50" or 55" monitors, complete with VIDEX support in black epoxy powder coated aluminum.
  • Top (work surface) to be chosen between 40mm chipboard wood or 18mm HPL stratified wood (optional on customer's specification).
  • Computer compartment under the work surface. Rack 19" (optional) in height 5 or 9 units.
  • 19" Rack structure in the central module for the housing of sockets, swhitch, Hu.
  • Doors with key lock (electric key)
  • Cable channel under the work surface.
  • A range of accessories allows to satisfy the needs of every operator.



Control Console Karma2







MODULAR CONSOLES STANDARD MODELS

The Karma2 Control Console is a modular technical furniture available in different sizes, linear or circular. The extreme customization of our consoles allows to create a wide range of control and command center layuot.



modular control console for control and command center









MODULAR CONSOLES LINEAR LAYOUT

modular control console linear layout







MODULAR CONSOLES CIRCULAR LAYOUT

modular control console circular layuot







MODULAR CONSOLES ANGULAR LAYOUT 10°-15°-22.5°-30°



modular control console angular layout







WIRING AND EQUIPMENT  MAXIMUM EFFICIENCY AND ORGANIZATION





control console internal view - equipment housing ang wiring organization

UPPER VIEW OF A STAND ALONE CONSOLE Equipped with 3 Compartments accessorizable with rack 19"









wiring organisation and housing of equipment control console



INTERNAL VIEW OF A STAND ALONE CONSOLE Equipped with 3 Compartments accessorizable with rack 19"













control console leg detail - wiring organization

INTERNAL LEG VIEW - Magnetothermic switch, terminals, distribution PDU, cable anchoring.







SIT AND STAND  MOTORIZED LEG

Control Console Karma 2 has a motorized lifting leg to raise the working surface from 760mm to 1200mm. With a thrust force of 5000N (500Kg) it ensures maximum freedom of movement and perfectely fits every operator. A Sit-Stand system is higly recommended by ergonomic standards, especially in continuos work environments such as command control centers, in order to reduce physical stress and fatigue.

control console with sit-stand system for control center
